DDS3

Deep Diagnostic System

ROBOT+ ADD ONS + DIGITAL PLATFORM

The Deep Diagnostic System (DDS) is designed to assess the health of buried and difficult to access infrastructures, enabling energy companies to implement predictive maintenance and save money and resources.

1. Robot inspection

2. Diagnostic Platform

3. A.I. works

4. Custom Report

The robot can operate inside pipelines or tunnels inside pipelines filled with pressurized water, conducting detailed inspections. Inspection data are combined with customer maintenance information (e.g., pipeline diameter, operating pressure, nominal thickness) through our digital platform.

This creates a comprehensive dataset, which is analyzed to produce a final report that outlines the risk of failure for each pipeline segment.

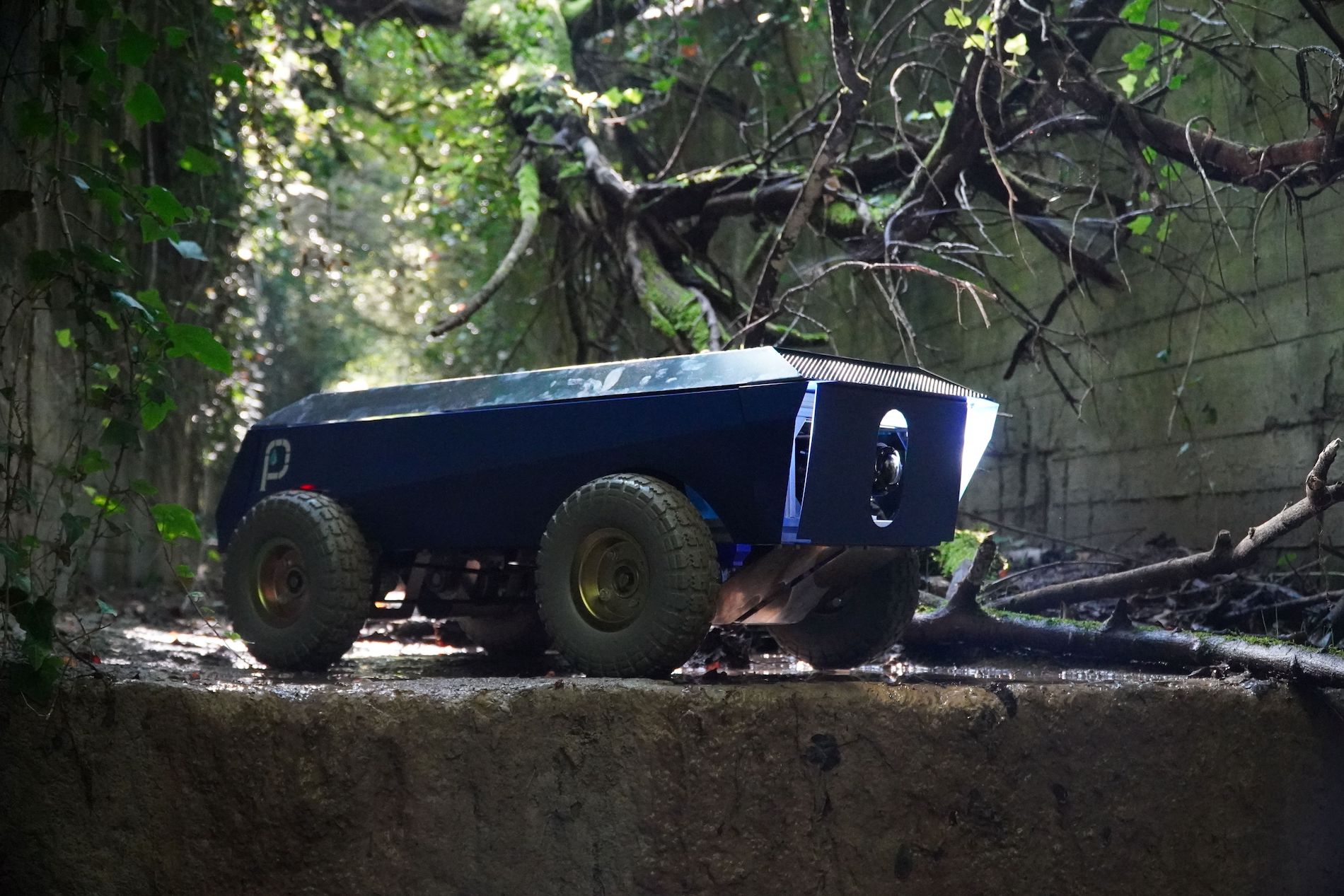

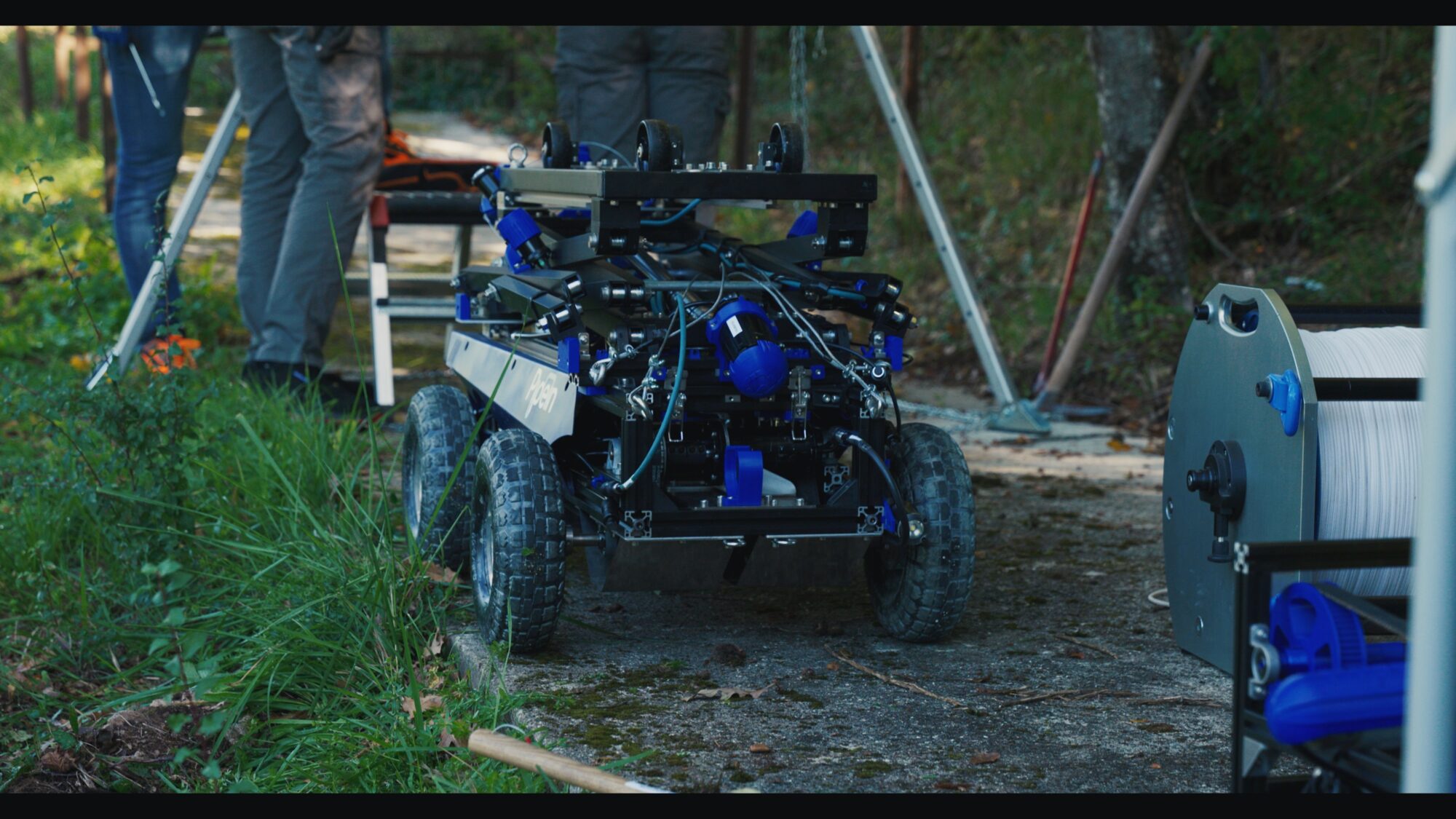

Robot

100cm length
45cm width
Adjustable height for duct diameter (from 50 to 250 cm)
40 / 53kg weight (disassemblable into two modules)
7 x 1080px underwater cameras
3 x 1500 lmn underwater lights
Inspections up to 2.2km from a single access point, extendable up to 5 km
IMU and encoder for the accurate localization

Add Ons

Insights on where and when maintenance decisions and actions need to be made and carried out.

4 x 4Mhz ultrasonic transducers
360° underwater laser scanner
4k underwater stereo camera
Profiling sonar

Specialized for
underground/pressurized assets

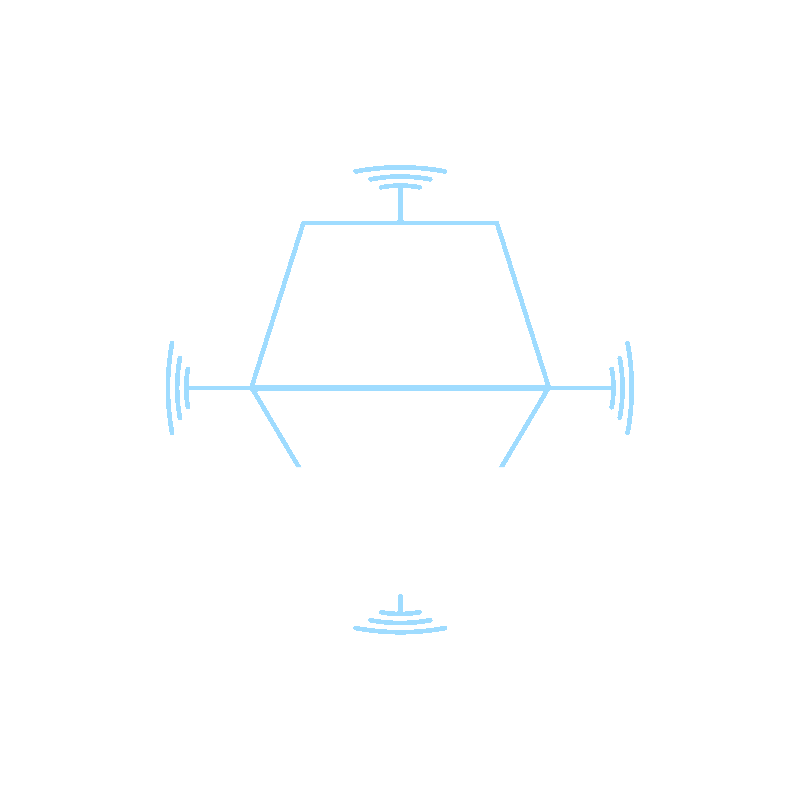

Pipe Type Forms

Asset Type

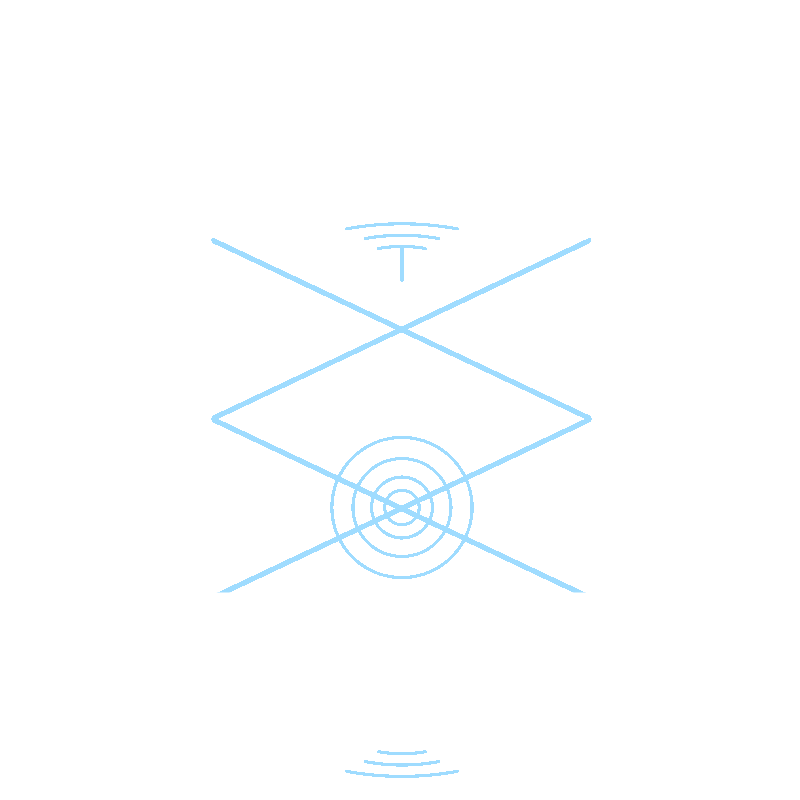

Different optional for pipelines size and complexities

Different optional for assets size and complexities

Digital Platform

Insights on where and when maintenance decisions and actions need to be made and carried out.

Data Analysis
Panoramic inspection of the entire data network
Custom-tailored asset segmentation

GET A SAMPLE REPORT

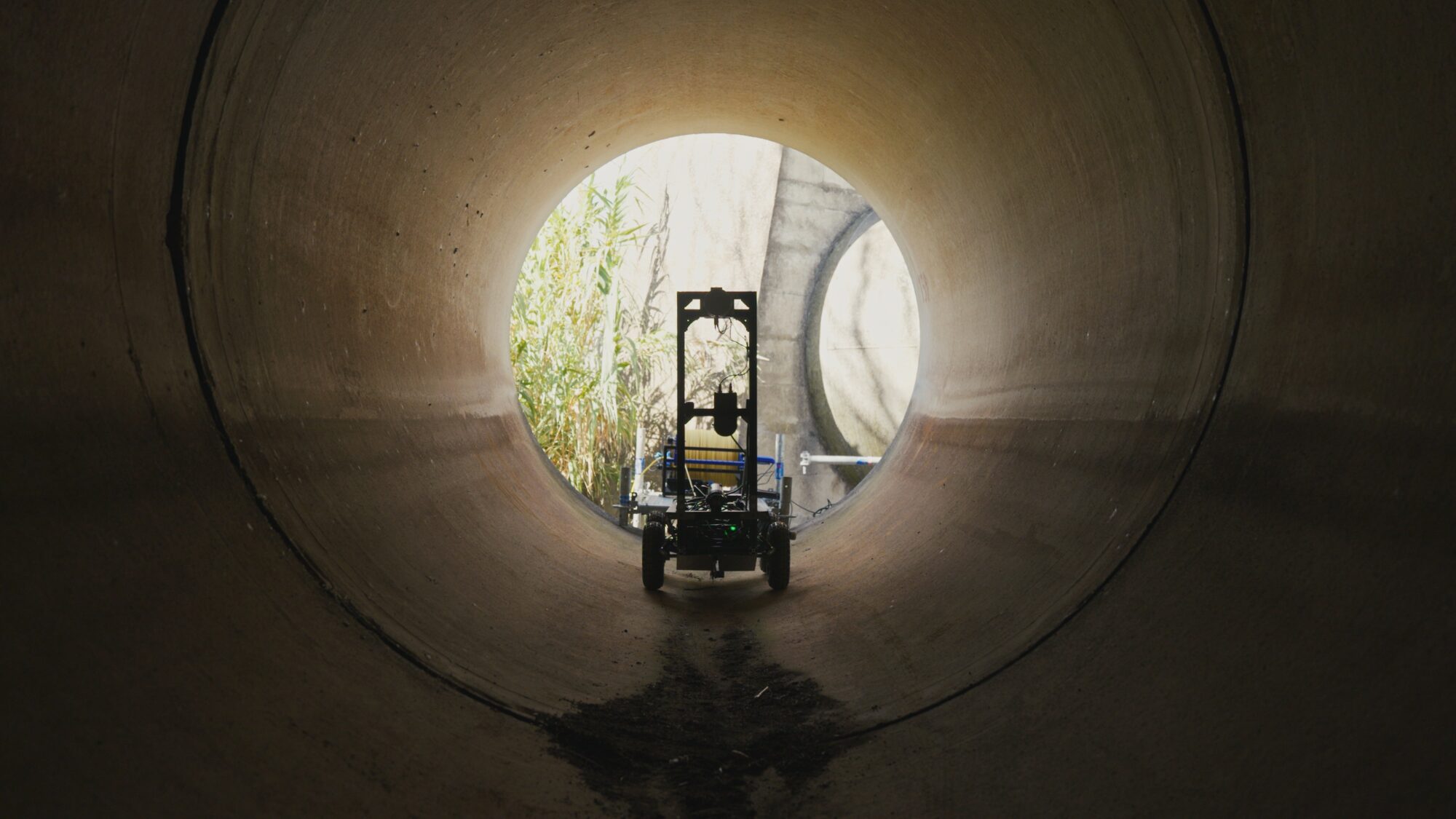

DDS3 in action

Slopes up to 70 degrees
Pressure up to 60 bar
Distances up to 5km
Thickness measurements and 3D analysis of structures
Corrosion quantification and ISO9712 certification

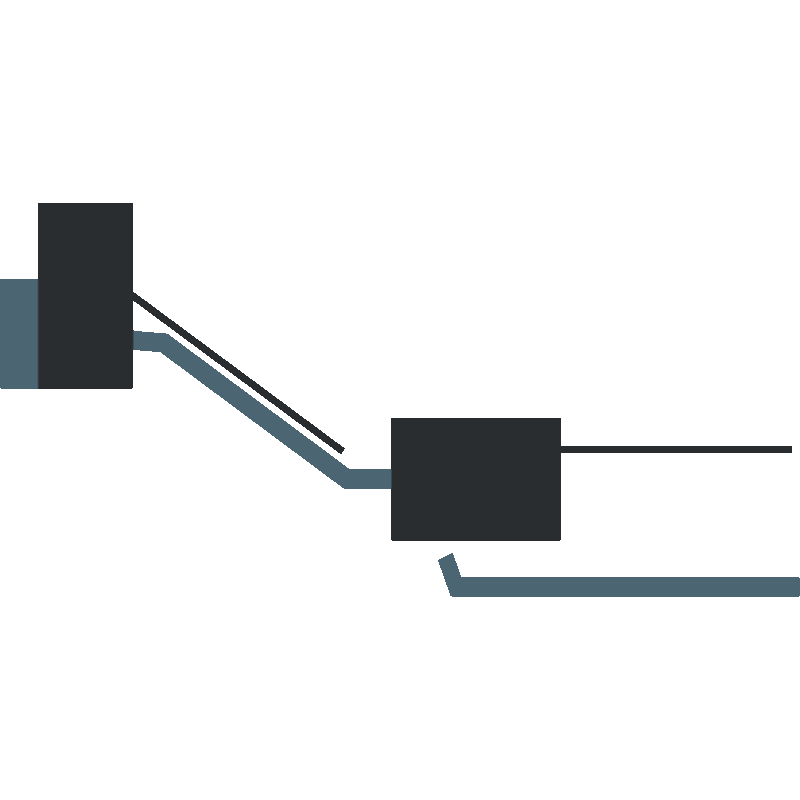

Specialized for pressurized pipelines

We develop cutting-edge DeepTech products for the hydropower sector, aiming to be the top choice for companies looking to enhance sustainability and minimize waste.
